Temperature analysis of PVA and Bridge Nylon

Post by Anders Olsson » February 9th, 2016, 4:10 pm

I will continue testing this new forum with some hardcore polymer stuff :)
(The nerd level of this post is probably a bit too high for the average user, even I realize that)

A polymer chemist at out lab ran some tests on "Torwell" PVA and on Taulman Bridge Nylon.
This technique is totally new to me, but the results were very interesting, so I will try to explain them.

To start with, the results confirms is that both PVA and Bridge Nylon are hygroscopic.
It also confirms that the the horror stories about PVA degrading rapidly at temperatures higher than 210 C are certainly true!

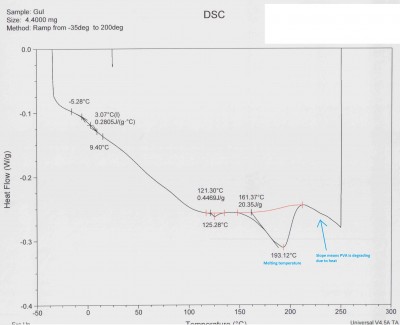

The first curve shows how much heat is needed to increase the temperature of PVA, the slope that starts above 210C means PVA uses heat to degrade.

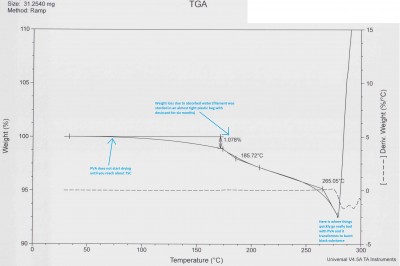

This curve shows the weight of the PVA sample as you heat it. Drying temperature, water content and catastrophic degradation can be seen here.

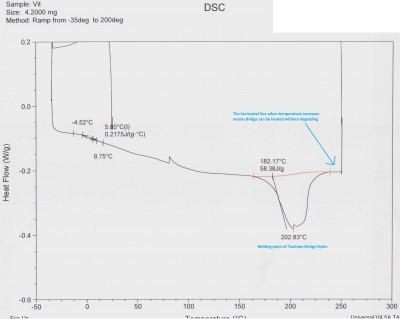

Here is the same kind of "heat needed to increase the temperature"-measurement for Bridge Nylon. The completely horizontal line above the melting point means Bridge can take heating far beyond the melting point without degrading.

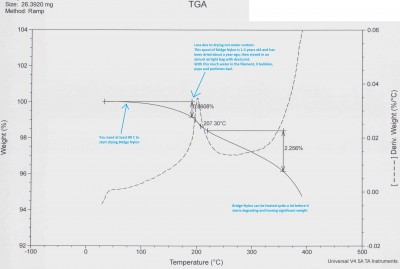

In this graph we see the temperature when drying starts and the water content of Bridge Nylon. We can also see that Bridge can take a lot of overheating before it starts degrading.
I should add that PVA prints perfectly fine at 190 C, 0.15 mm layers and 40 mm/s. No problem whatsoever as long as it is kept dry.
When subjected to humidity it slowly transformed into something sticky/rubbery like half boiled pasta.
Last edited by Anders Olsson on February 17th, 2016, 7:19 pm, edited 1 time in total.
